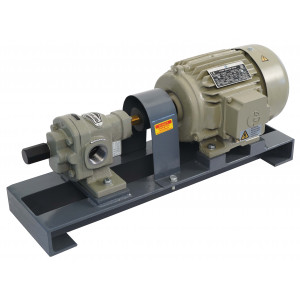

Rotary Gear Pump
Rotary Gear Pump Details
Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FT” which is self priming, foot mounting type positive displacement rotary gear pump. Model “FT” having simple two pieces Cast Iron construction which is single helical modified profile carton steel gear shrink fitted on alloy steel hardened and grind finished shaft as gear firmly supported 4 nos. of self lubricated sintered bronze bush bearing which ensure smooth running. These pumps can be run in either direction with change in inlet-outlet port position. The relief valve operations can be reversed by simply changing the R.V. parts on opposite side.
The suction and delivery connections are available in 1/4" to 3" sizes. These pumps can be operated up to pressure of 10 kg/cm² with 5 LPM to 500 LPM flow capacity. These pumps are designed to run at 1440 RPM up to viscosity of 50,000 to 1,00,000 SSU and maximum temperature up to 200ºc. It is desirable to reduce speed for size above 1½" performance at low speed is always advantageous as it improves efficiency, reduce noise level and enhances operational life. The capacity will reduce in proportion to the speed.
Material of Construction
| Part | Material For Standard | Material For H.T. |
| Body | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| Back Cover | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| Gland Cover | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| R.H. & L.H. Gear | EN-8 | EN-24 [H. Nitrated] |
| Rotor/Stator Shaft | EN-19 | EN-19 |
| Bearing[Bushes] | Non Ferrous Sintered Bronze | Non Ferrous Sintered Bronze |
| Sealing | Neoprene oil Seal / Mechanical seal | “GFO” Pack Teflon / Mechanical Seal |
| R.V. Cap | Aluminum | Aluminum |
| Key for coupling | EN-8 | EN-8 |
Technical Specification
| Model | Suction & Delivery Size | Capacity at 1440 RPM | ||
| LPM | US GPM | M³/hr | ||
| FT-025 | 1/4" x 1/4" | 05 | 1.30 | 0.3 |
| FT-050 | 1/2" x 1/2" | 20 | 5.30 | 1.20 |
| FT-075 | 3/4" x 3/4" | 30 | 7.92 | 1.80 |
| FT-100 | 1" x 1" | 50 | 13.20 | 3.00 |
| FT-125 | 1 ¼" x 1 ¼" | 75 | 19.80 | 4.50 |
| FT-150 | 1 ½" x 1 ½" | 110 | 29.00 | 6.60 |
| FT-200 | 2" x 2" | 225 | 59.40 | 13.50 |
| FT-250 | 2 ½" x 2 ½" | 350 | 92.50 | 21.00 |
| FT-300 | 3" x 3" | 500 | 131.60 | 30.00 |
Features
- Simple and Efficient design.
- Single helical gear design.
- Low noise.
- Wide capacity range.
- Easy to maintain.
- With relief valve design.
- High efficiency.
- Optionally available in double helical gear design.
- Self priming pump.
- Bi-direction positive displacement pump.
Application
- Refineries.
- All kind of mineral Oils.
- Printing inks.
- Dyes and Resins.
- Glycerin and Glycol.
- Bitumen.
- Fuel oil, Diesel oil, Furnace oil.
- Power plant.
- Steel plant.
- Cement plant.
- Oil storage installation.
