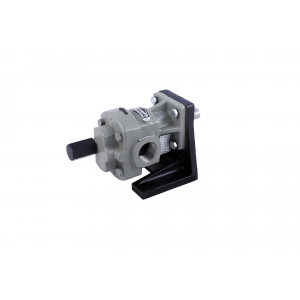

Rotary Gear Oil Pump
Rotary Gear Oil Pump Details
Model – FTX
Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTX” which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model “FTX” having Single helical shrink fitted gear pair and hardened and grind finished shaft. Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.
The suction and delivery connections are available in 1/4" to 1 ½" size. These pumps can be operated up to pressure of 10 kg/cm² with 2.5 LPM to 125 LPM flow capacity. These pumps are designed to run at 1440 RPM and suitable liquid up to viscosity of 1,00,000 SSU and maximum temperature up to 200ºc.

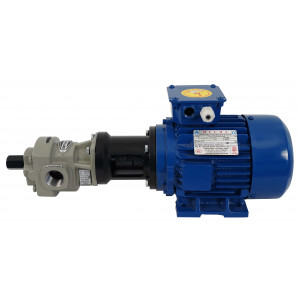

FTX Monoblock pump
Simple and compact designs of Monoblock pumps are available in this model.
Monoblock version is very easy to portable one to another place and it does not required to align every time when coupled with electric motor. Monoblock version save space and reduces down time.
Material of Construction
| Part | Material For Standard | Material For H.T. |
| Body | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| Back Cover | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| R.H. & L.H. Gear | EN-8 | EN-24 [H. Nitrated] |
| Rotor/Stator Shaft | EN-19 | EN-19 |
| Bearing[Bushes] | Non Ferrous Sintered Bronze | Non Ferrous Sintered Bronze |
| Sealing | Neoprene oil Seal | “GFO” Pack Teflon |
| R.V. Cap | Aluminum | Aluminum |
| Key for coupling | EN-8 | EN-8 |
Technical Specification
| Model | Suction & Delivery Size | Capacity at 1440 RPM | ||
| LPM | US GPM | M³/hr | ||
| FTX-025 | 1/4" x 1/4" | 2.50 | 0.65 | 0.15 |
| FTX-025 | 1/4" x 1/4" | 5.00 | 1.30 | 0.3 |
| FTX-050 | 1/2" x 1/2" | 10.00 | 2.65 | 0.6 |
| FTX-050 | 1/2" x 1/2" | 15.00 | 4.00 | 0.9 |
| FTX-075 | 3/4" x 3/4" | 20.00 | 5.30 | 1.2 |
| FTX-075 | 3/4" x 3/4" | 25.00 | 6.60 | 1.5 |
| FTX-100 | 1" x 1" | 35.00 | 9.25 | 2.1 |
| FTX-100 | 1" x 1" | 50.00 | 13.20 | 3.0 |
| FTX-125 | 1¼" x 1 ¼" | 75.00 | 19.80 | 4.5 |
| FTX-150 | 1½" x 1½" | 110.00 | 29.00 | 6.6 |
| FTX-200 | 2" x 2" | 225.00 | 59.40 | 13.5 |
Features
- Compact and Simple design.
- Foot and Flange mounting options.
- Self priming pump.
- Single helical gear design.
- Optionally available in double helical gear design
- Bi-directional positive displacement pump.
- With relief valve design.
- Optional high temperature version up to 200º c.
Application
- Oil filtration systems.
- Pumping and Heating systems.
- Cleaning and Cooling systems.
- Centralize lubrication systems.
- Petroleum industries.
- Machine tools industries.
